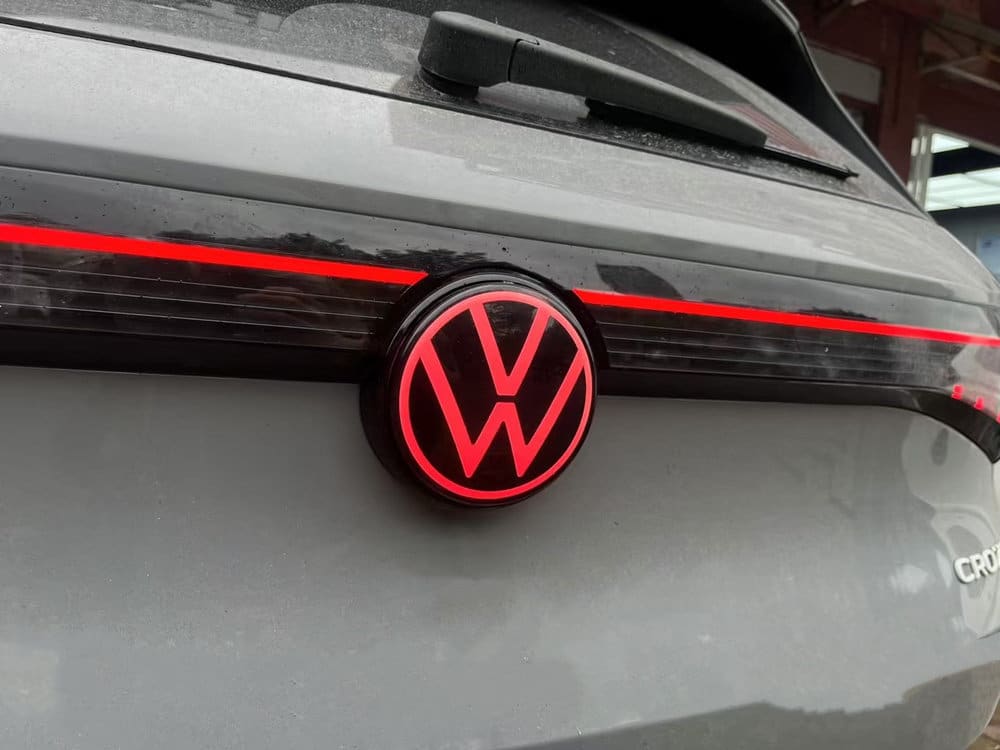

If you’re looking for how to install VW rear LED emblem, you need to know that the rear installation is different from the front. Because it is mounted on the trunk/tailgate, The Volkswagen rear LED emblem is on the trunk so you have to get to the part and put the wires through the Volkswagen car body. If you do it carefully your Volkswagen rear LED emblem will look like it was always there.
🛠️ Tools You May Need
You will need some tools to install the Volkswagen LED emblem, such, as tools to remove the trim, a screwdriver, a drill if you need to make holes, a cloth to clean and some basic tools to work with wires for your Volkswagen rear LED emblem.
📌 How to Install VW Rear LED Emblem – Step-by-Step
Step 1: Remove the Original Emblem
The first step is removing the OEM original emblem. Use a trim tool to gently pry it off so that will not damage the paint and part.
Step 2: Remove the Trunk Inner Panel
Open the trunk and remove the inner liner/back panel. This is a key part of VW rear LED emblem installation, as it allows access to the wiring area behind the emblem.
Step 3: Drill and Feed the Wire
If there is no hole on your car, you need to drill a small opening near the emblem position. Feed the LED emblem wire from the outside into the trunk interior. This step ensures a clean wiring setup when learning how to install VW rear LED emblem properly.
Step 4: Route the Wiring
Guide the wire harness through the trunk cavity toward the license plate light or tail light wiring. Make sure the wire is secured away from moving parts.
Step 5: Install the LED Emblem
Align and secure the LED emblem firmly onto the trunk/tailgate. Proper alignment is essential when completing how to install VW rear LED emblem for a professional finish.
Step 6: Connect the Power
Complete the wiring connections:
- Red Wire → Positive (+) of the license plate light or tail light
- Black Wire → Negative (-) / Ground
This is the final wiring step in VW rear LED emblem installation, so double-check all connections.
✅ Final Check
Turn on your lights to confirm the emblem illuminates correctly. Once everything is working, reinstall the trunk panel to complete installation of VW LED emblem successfully.
🎥 Need Help?
For a full walkthrough on how to install VW rear LED emblem, refer to the installation video. If you encounter any issues, feel free to contact us for support.
