You can replace the Chevrolet bowtie emblem on a 2019 Suburban. It can improve the vehicle’s appearance. You might have the problem that your original badge may be faded, damaged, or not to your taste. But you can replace easily because it is a simple DIY project. Also, you do not need special tools or professional help. This guide explains how to remove the factory Chevy Suburban Emblems from the grille and liftgate. It also explains how to install a new emblem correctly.
Why Replace Your Chevy Suburban Emblem?
Factory emblems can become worn over time and they may fade, chip, or peel. Some owners choose to paint them, but the results can not last for a long time. You will find that the paint may not bond well to the surface. You can choose a replacement emblem which is a simple and low-cost solution. Your car can get a clean, factory-style look with it. Doing the installation yourself saves money on shop fees. It also helps you gain experience with basic vehicle maintenance.
Tools and Materials Needed
You should prepare the following tools and supplies before you start:
1,Trim and molding removal tools: These plastic pry tools can prevent scratches. You can use them to release the emblem without damaging your grille or liftgate.
2,Replacement emblems: Purchase front and rear emblems made specifically for the 2019 Suburban. Aftermarket replacements are widely available online.
3,Rag or microfiber cloth: You can use it to clean off residue.
4,Nail polish remover or adhesive remover: It helps dissolve leftover adhesive (paint thinner is another option, but you should use with caution).
5,Dry cloth: You can wipe down the area before installing the new emblem.
How to Remove and Replace the Chevy Suburban Emblems

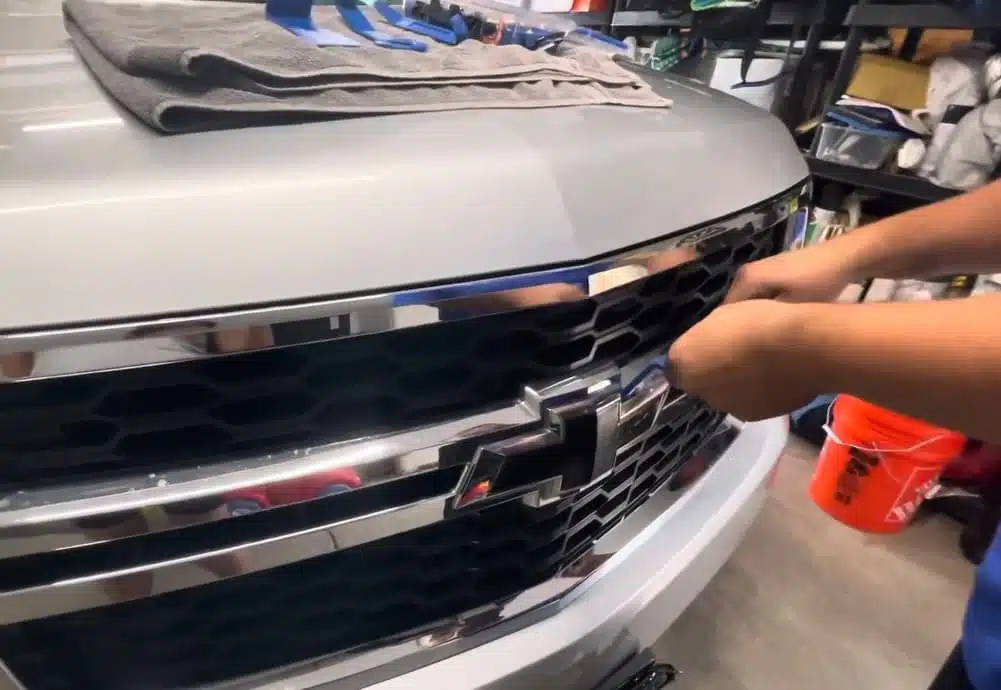

Remov the Front Chevy Suburban Emblem
You can refer to these steps to remove the front bowtie:
1,Locate the emblem: The front emblem is in the center of the grille.
2,Select a trim tool: You can use a thin pry tool from your trim kit. This helps avoid scratching the surface.
3,Pry carefully: You can slide the tool under the edge and work slowly around the emblem to release the clips. Do not force it.
4,Remove the emblem: Take off the emblem. You can pull it away once all clips are released. You should dispose of it if the paint or finish is damaged.
5,Inspect the grille: Make sure all retaining tabs are still intact. The new emblem will snap in if nothing is broken.

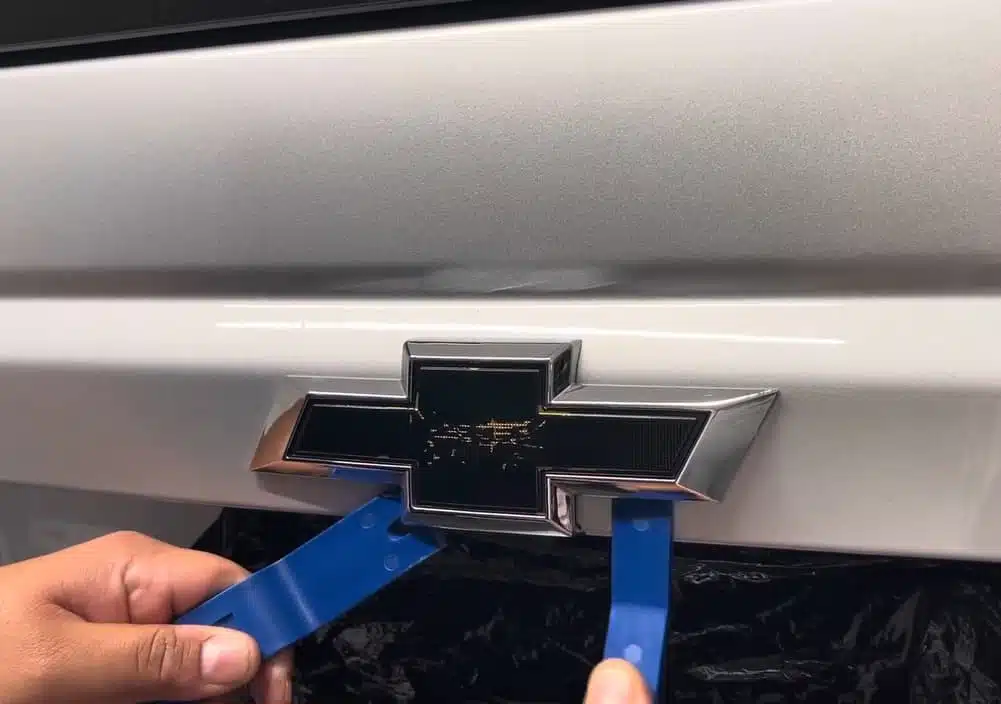

Remove the Rear Chevy Suburban Emblem
The rear emblem on the liftgate is usually attached with adhesive, not clips. You can refer to a few simple steps to remove it:
1,Start at the bottom: You should slide a trim tool under the lower edge. You can pry from the bottom to get better leverage.
2,Work the adhesive: You need to work slowly so you do not damage the paint. You also need some time to loosen it.
3,Peel off the emblem: You can try to lift the adhesive off in one piece if possible after you loosen it.
4,Prepare to clean: Some adhesive residue may remain on the liftgate. You should remove it completely before you install a new one.

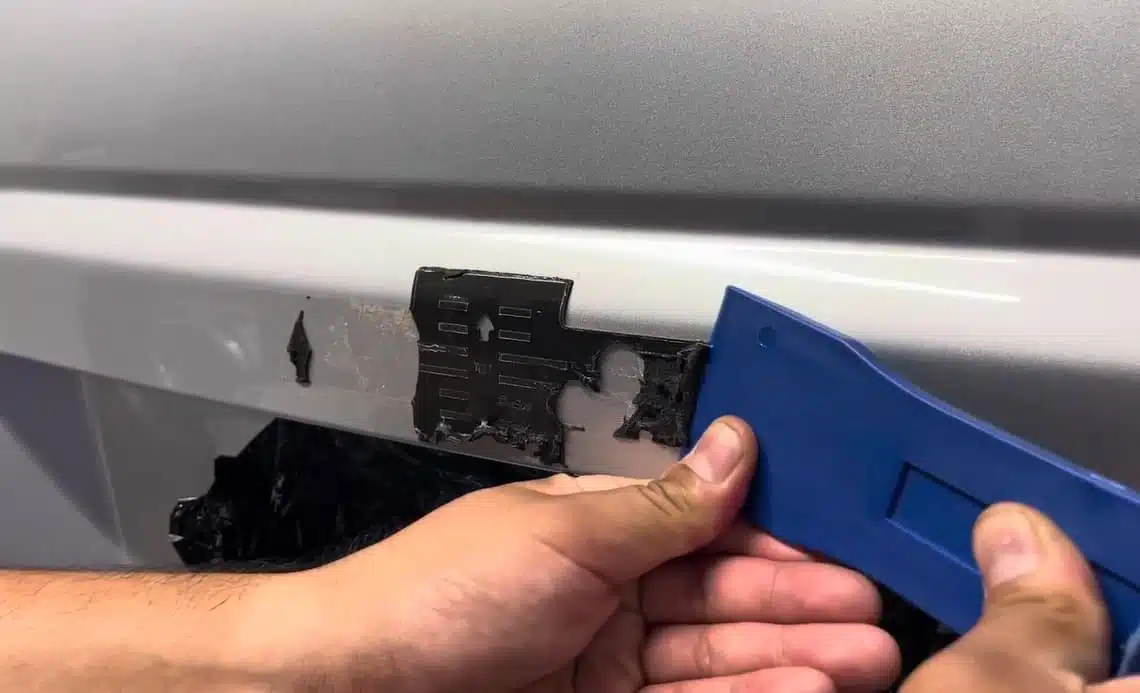

Cleaning the Adhesive Residue
You need to know that adhesive residue can prevent the new badge from sticking properly. You should clean it completely by following steps:
1,Switch tools: You can use a thicker trim tool to remove large chunks of adhesive. You should be careful not to scratch the paint.
2,Apply adhesive remover: You put a small amount on a cloth and then use nail polish remover or a dedicated adhesive remover: But you should not pour it directly on the paint.
3,Rub gently: You wipe the residue with small circular motions. You add more remover if needed.
4,Dry the area: You should use a clean, dry cloth to remove any remaining solvent and moisture. The surface does not need to be perfectly clean but you should clean it as well as you can.

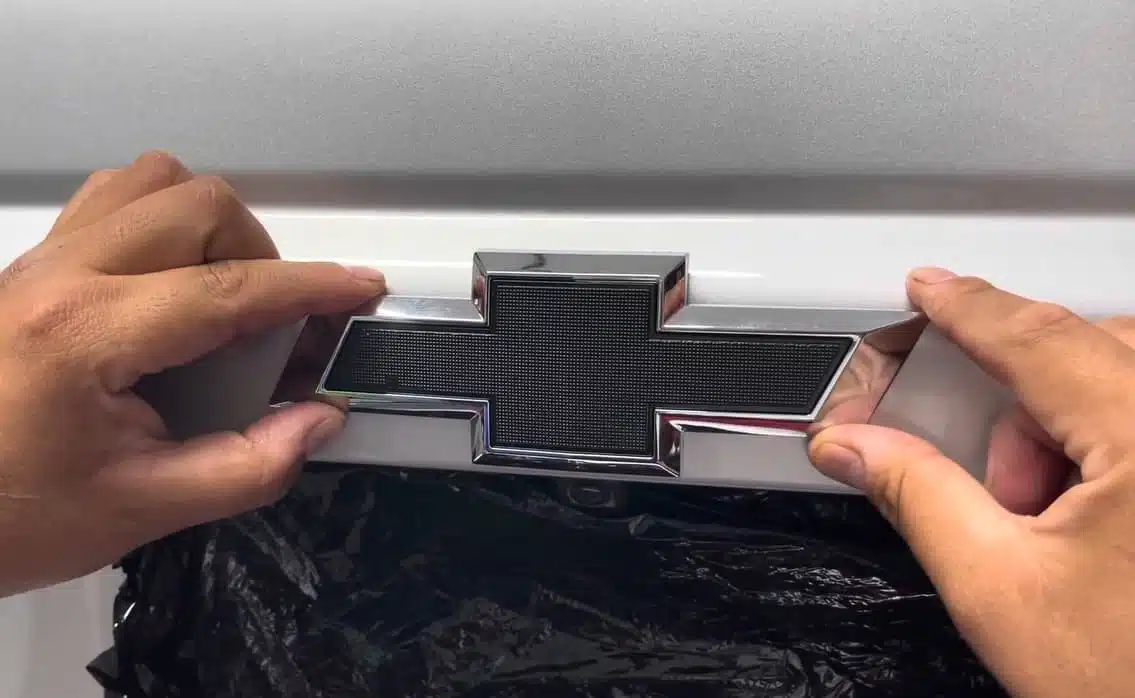

Installing the New Emblems
You have removed the old emblems and cleaned the surfaces. Now you can install the new ones:
1,Align the front emblem: You can place the new grille emblem to match the clips and the holes. You should make sure it faces the correct direction and press it in until it snaps into place.
2,Prepare the rear emblem: You should check the new liftgate emblem and look for a mark or arrow that shows the correct direction.
3,Remove the backing: Now you can peel off the protective film..
4,Position the emblem: You can place it where the old emblem was. You should make sure it is straight and centered.
5,Apply pressure: You should press firmly on the entire emblem and hold it for a few seconds so that it sticks well.
6,Check alignment: You can step back and look at both emblems to make sure they are straight. Remember to adjust them quickly if needed before the adhesive sets.
Some people want to upgrade the emblem to the LED. and you can check the light up Chevy emblem in our store here
Final Tips and Conclusion
It is simple and inexpensive to replace the Chevy bowtie on your 2019 Suburban. If you buy a set of aftermarket emblems, you need around $40. It is a good idea to use a trim removal tool kit. You can buy one at an auto parts store or a discount shop. You can remove the old emblem without damaging the paint by using this tool.
You should remember to remove the old emblems and dispose of them after installation. If you are not happy with the new emblems, you can powder coat them. You can also upgrade to higher-quality custom badges. This will make the finish stronger and more durable.
This project can make your Suburban look new again. It does not require a lot of money or time. You can share your results online and look for more DIY tips to keep your vehicle in great shape!
