Upgrading your Audi with a 2nd generation light up emblem is one of the most stylish modifications you can make. Not only does it enhance the luxury aesthetic of your vehicle, but it also offers a sleek, modern touch that turns heads day and night.
In this guide, we’ll walk you through a step-by-step audi light up emblem installation process, covering every detail from removing your old emblem to wiring your new one. Whether you’re a DIY enthusiast or new to car modifications, this guide will make the process easy to follow.
Features of the 2nd Generation Audi Light Up Emblem
The latest generation of Audi emblems comes with improvements such as:
- Brighter, energy-efficient LED lighting.
- Durable, weather-resistant housing.
- A perfect OEM fit for Audi models with minimal adjustments needed.
- No need the 3M tape.
- Easy installation with our plug&play wire.
Tools and Materials You’ll Need
Before starting, gather the following tools:
-
Trim removal tool.
-
Flathead screwdriver.
-
Wire tuck tool or small plastic pry tool.
-
Electrical tape.
Step-by-Step for 2nd Gen Audi Light Up Emblem Installation

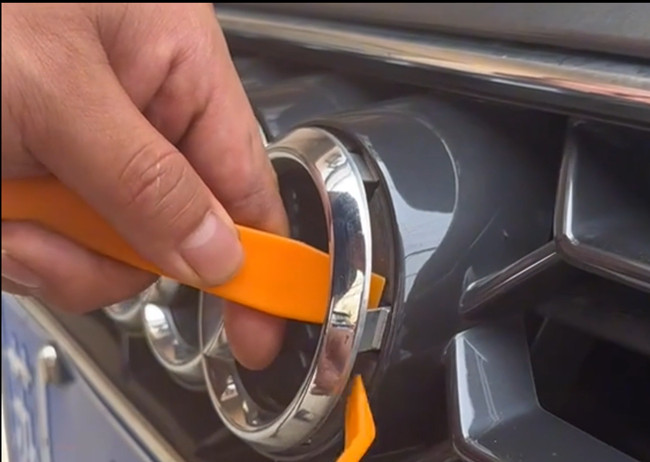

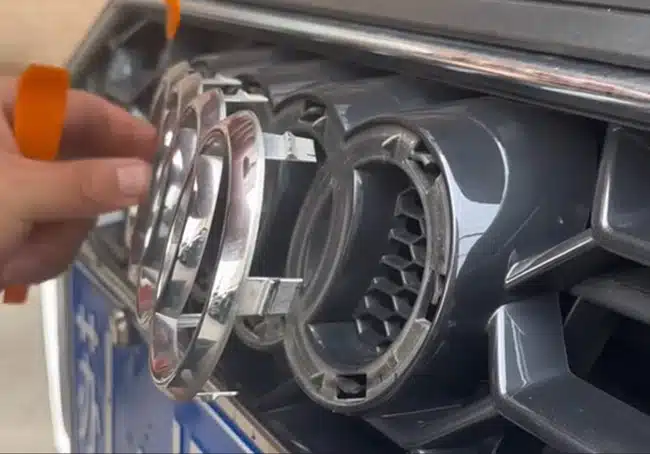

Step 1: Remove the Factory Emblem
Using a trim removal tool or flathead screwdriver, carefully detach the factory emblem from the grille. Be gentle to avoid scratching the surface.

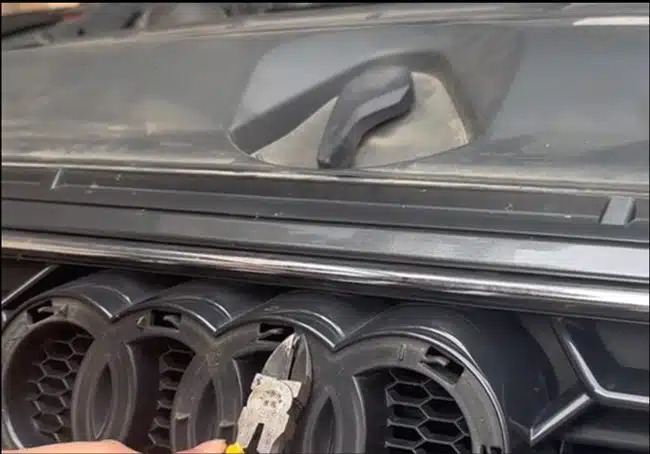

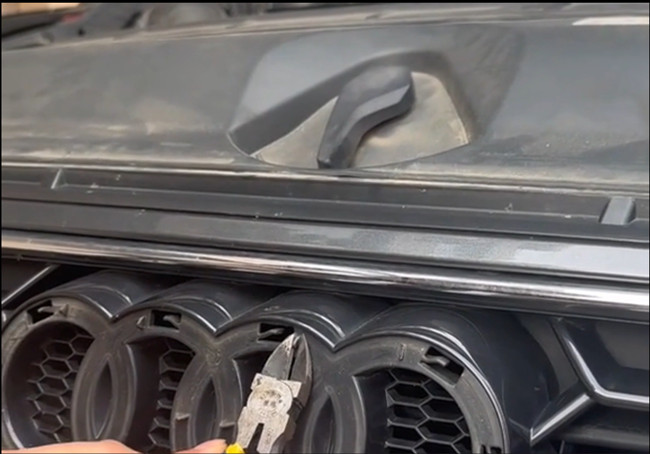

Step 2: Cut the Original 8 Clips on the Face
The emblem is held in place by 8 clips. Cut through them carefully by cutter and remove it

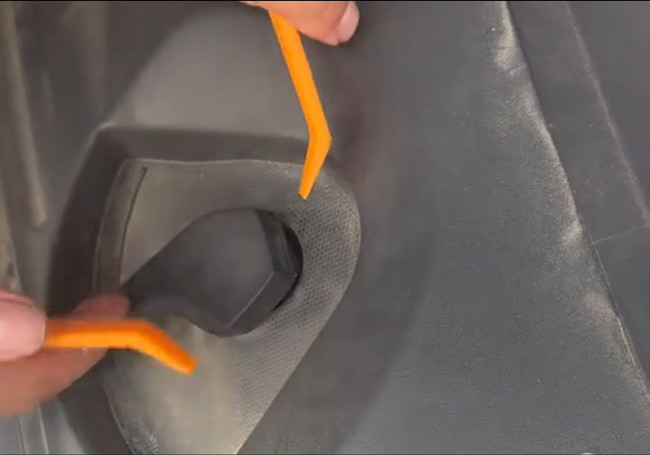

Step 3: Press the Button to Release the Clip
Use the plastic trim tool to press the button and remove the clip which fix on the plastic panel

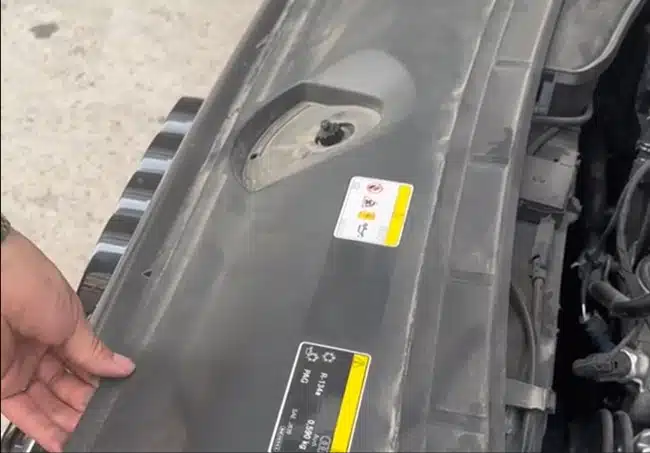

Step 4: Remove the Plastic Panel
Once the clips are released, remove the plastic panel easily

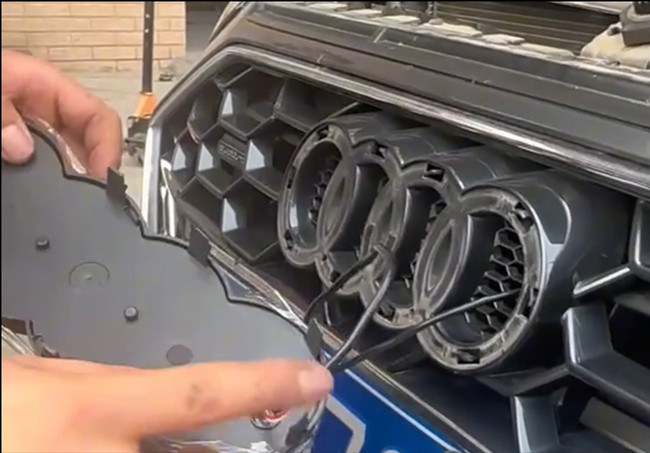

Step 5: Tuck in the Wiring Carefully
Feed the wiring of the light up emblem through the grille and tuck it neatly behind the panel to avoid tangling.

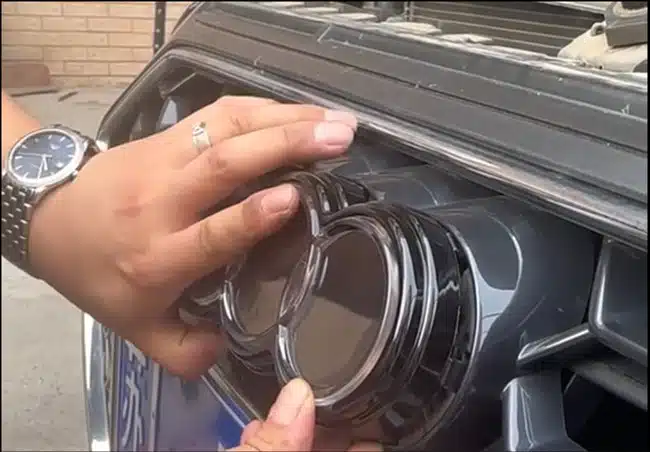

Step 6: Insert the Audi Light Up Emblem
Snap the new emblem into place where the original one was removed. Ensure it fits flush with the grille.

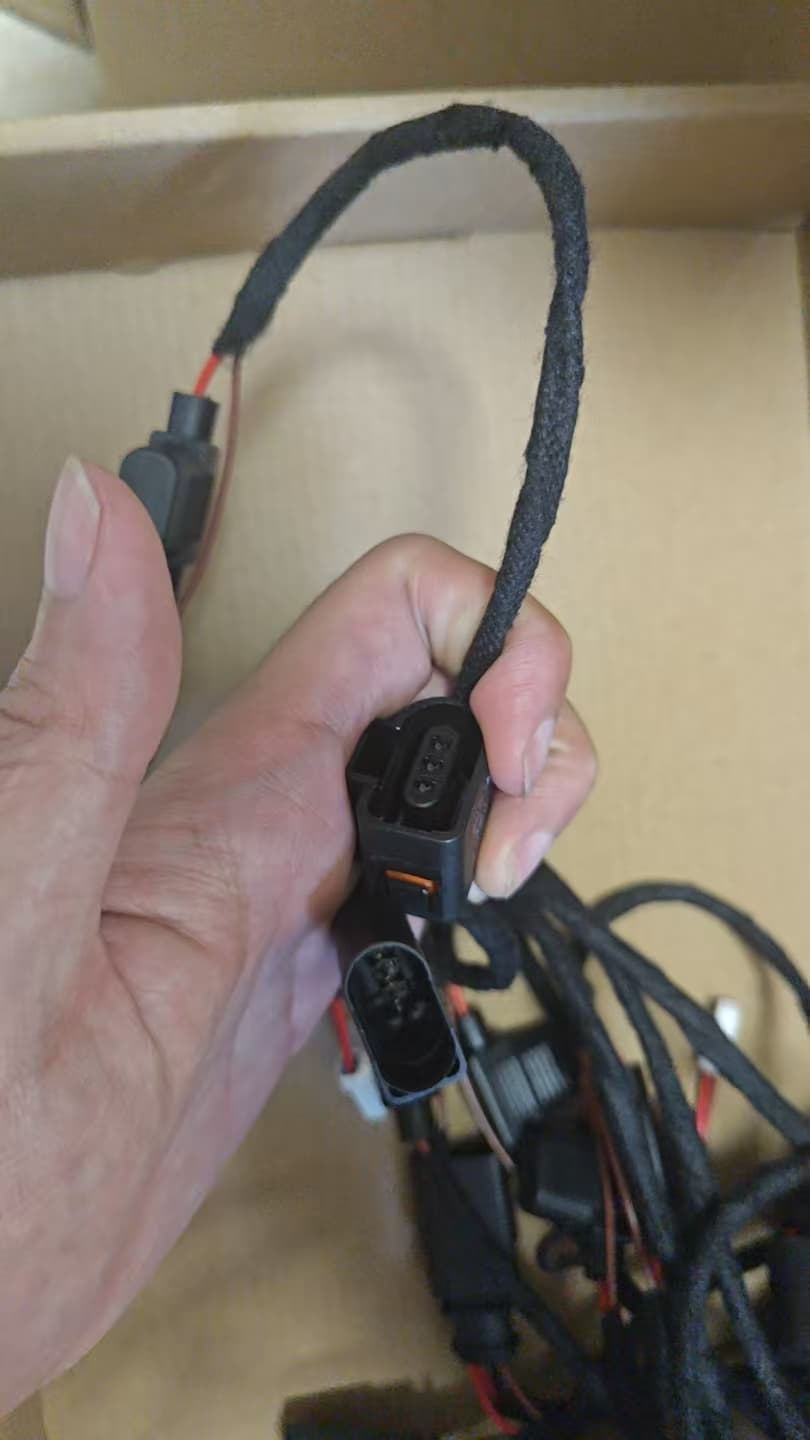

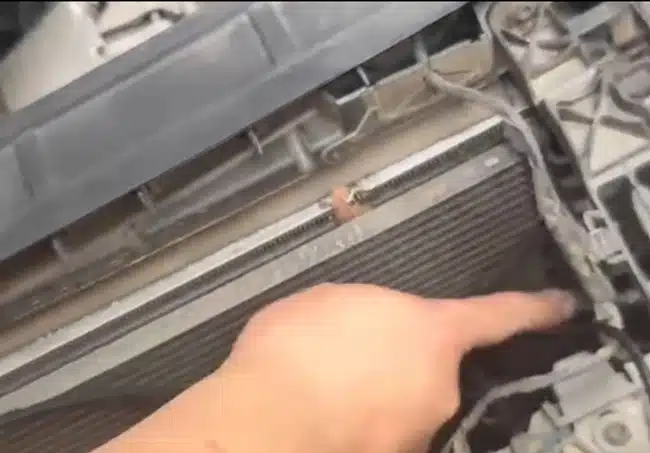

Step 7: Connect to the Water Tank Plug for Power
Plug the wiring into the water tank plug for power. This connection provides a steady and reliable energy source for the LED emblem.
———————————————————————————————————————————————————————————————-
FAQs About 2nd Generation Audi Light Up Emblem Installation
Q1: Is the installation reversible?
Yes, you can revert to the factory emblem anytime.
Q2: Does the light up emblem drain the battery?
No, it’s designed to be energy-efficient.
Q3: Can I install it without cutting the clips?
No, cutting the clips is necessary or the clips will stop the new emblem installation
Q4: Will this void my Audi warranty?
Typically, cosmetic upgrades don’t affect your warranty, but confirm with your dealer.
Q5: How long does installation take?
Around 45 minutes to 1 hour for most DIY enthusiasts.
Q6: Can I connect the emblem to another power source?
Yes, but the water tank plug is the easiest and most reliable option.
Still not cleared how to install it? Check the video as below:
